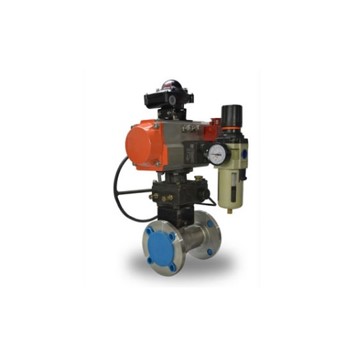

BALL VALVE SERIES 3000
Ball Valve with pneumatic Piston actuator rack and pinion type are specially designed for on-off application.
It is widely used in control of air, water, oil, gas and steam in Pharma, Textile, Chemical, power generation, paper pulp, petrochemical industries etc.
Design Features
- Simple construction provides ease in maintenance Without disturbing insulations and piping connections.
- “O” Ring used in Piston provides good pressure seals with minimum friction.
- Compact design hence reduced weight and low cost.
- SNS (LH/RH) spring in spring type. The introduction of Pre Loaded spring cartridges, That removes the danger in the case of disassemble of spring return actuator and that allows easy change of spring number present inside.
- Long life over 100 thousand cycles
Get a Custom Solution Quote
Tell us your requirements. Our engineers will design it for you.
- Quick Response within 24 Hours
- Engineered to Meet Your Exact Specifications
Technical Specification
| Body Design | BS 5146, MSS SP 72 & ANSI B16.34 |
| Body Type | 2-piece design |
| Valve Size | 15 to 150 mm (1/2″ to 6″) |
| Rating | ANSI 150, BS 10 Table “F”, etc. |
| End Connection |
Flanged – 15 to 150 mm (1/2″ to 6″) Screwed – 15 to 150 mm (1/2″ to 6″) Socket Weld – 15 to 150 mm (1/2″ to 6″) Tri Clover End – 15 to 50 mm (1/2″ to 2″) |
| Body Materials | SS 304, SS 316, CS, CI, etc. |
| Ball | SS 304 / SS 316 |
| Ball Seal Ring | Grafoil / PTFE V Rings |
| Trim Designs | Anti Blow Out |
| Trim Materials | Stainless Steel 304 / 316 |
| Characteristics | On / Off |
| Seat Leakage | Class VI – Metal to Soft Seating, Bubble Tight (Zero Leakage) |
| Mounting Pad | As per ISO 5211 |
| Actuator Type | Double Piston (Rack & Pinion) |
| Actuator Action |
Single Acting / Double Acting Single Acting – Air Failure Spring Return Type Double Acting – Air Failure “Stay Put” |
| Cylinder Body | Extruded Hardened Aluminum |
| Pinion Shaft | EN8 / SS 304 / SS 316 |
| Piston Rack | Hardened Aluminum LM 24 |
| Piston Guides | 40% Bronze Filled Teflon |
| Springs | Pre-Loaded Spring SNS (LH/RH) Type |
| Sealing | Nitrile (Viton or EPDM available on request) |
| Air Supply | 3.5 – 6 Kg/cm² |
| Air Connection | 1/4″ NPT |
| Optional Accessories |
3/2 Way, 5/2 Way Solenoid Valves (220VAC / 24VDC), Micro & Proximity Limit Switches, Air Filter Pressure Regulators, Side Mounted Handwheel (Worm Gear, Quarter Turn) |
