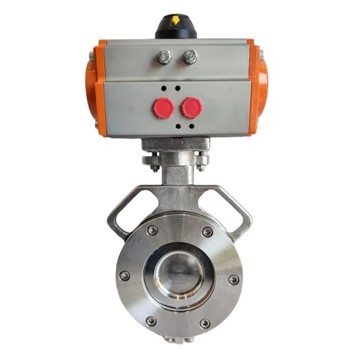

TRIPLE OFFSET BUTTERFLY VALVE SERIES 5003
Butterfly valves with single or double offset construction do not perform to the expectations when used for harsh & severe process applications, such as extreme temperature conditions, steam isolation, high operational frequency, abrasion services etc. Triple offset butterfly valves provide reliable & efficient performance under these harsh applications.
Series 7600 Triple offset metal seated Butterfly valves with unique seating geometry & design disc-shaft engagement provide high cycle life under extreme temperature conditions. With metal to metal tight shut-off characteristics eliminates.
Design Features
- Metal Seated Rate ‘A’ as per ISO 5208
- Inherently Fire Safe Design
- Suitable to handle high temperature and abrasive application
- Anti Blow out stem design
- Double Eccentric Disc design impart extremely high Edge to suit various demanding applications
- Metal to metal Tight shut-off
- Laminated Seals
- Bidirectional
- Cryogenic application valve available
Get a Custom Solution Quote
Tell us your requirements. Our engineers will design it for you.
- Quick Response within 24 Hours
- Engineered to Meet Your Exact Specifications
Technical Specification
| Parameter | Specification |
| Design Standard | API 609, B 16.34 |
| Face-to-Face (F/F) | API 609 / EN 558 |
| Testing Standard | API-598 / EN-12266 / API-607 |
| End Connection | FLANGE / WAFER / LUG — B16.5, B16.47, EN1092-1, BUTTWELD — B16.25 |
| Size Range | DN 80 to DN 1200 (3” to 48”) |
| Working Temperature | -29°C to +538°C (with suitable material combinations) |
| Extreme Temperature Capability | -100°C to +700°C |
| Body Styles | Lug Type and Double Flanged |
| Actuator Types | Manual Gear Operator, Pneumatic Actuator, Electrical Actuator |
